SRP £1250
(NOW SHIPPING)

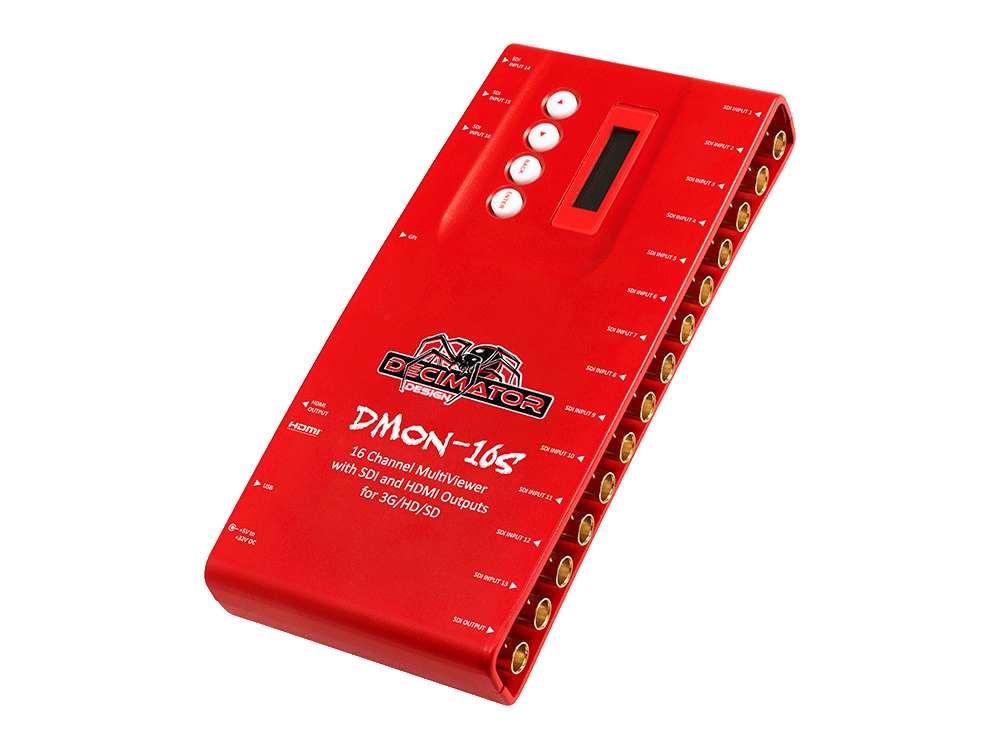

DMON-16S

1 to 16 channel multiviewer with SDI and HDMI outputs for 3G/HD/SD. Custom layouts, UMDs, Audio Meters, Graticules and Tallies

The DMON-16S from Decimator Design is a low cost, miniature 16 to 1 Multiviewer. The 16 SDI inputs are independent of each other, meaning you can monitor a mix of 3G/HD/SD feeds.  Select from preset layouts or customise your own, depending on the number of feeds you wish to monitor.  The Decimator DMON-16S multiviewer allows you to:

  • Monitor between 1 and 16 independent 3G/HD/SD-SDI feeds
  • Select your output format over SDI and/or HDMI
  • Fully customisable layouts with ability to save & load
  • 16 character customisable UMD overlay per window
  • 8 channel customisable Audio Metering overlay per window
  • Customisable Safe Action, Safe Title and Centre Cross overlays
  • Each window is independent of the others with variable aspect ratios
  • Auto Detect & display any format of any frame rate simultaneously
  • Select any of the 16 inputs for pass-through on the SDI and HDMI outputs
  • 32 GPI on 37-pin D-SUB for Tallies and Remote Switching
  • RS422/485 on 37-pin D-SUB for Dynamic UMDs and Tallies using TSL protocol
  • USB for PC/MAC control
  • Control on-unit using the buttons and LCD screen
  • Toggle one feed to fullscreen

For a "Lite" version of the DMON-16S, see the DMON-16SL.

DMON-16S comes with a Locking DC Power Supply, USB Cable, HDMI Cable & Mounting Bracket.  Warranty for all Decimator Design products is 3 years.

For product info on the Decimator website click here.


Decimator Design regularly add features to their existing products.  Keep checking their website and download the latest Control Panel (Mac/Windows) for firmware updates.
